Direct-drive system, new power supply unit, wire feeder, automatic wire threader,
and L-Cut Wire Chopper enables continuous automatic machine operation
Main Features
Direct-drive & Integrated structure
Sodick's direct-drive system uses linear motors and linear scales, and its excellent positioning accuracy never diminishes over time. The machine also employs a unique integrated structure design, offering the world's best-in-class installation space and machining area size.
New power supply unit
The new power supply unit employs Sodick's 5th generation “Perfect Active Control” EDM technology. In addition, the 1GB/sec serial communication data rate makes simultaneous high-speed processing of both discharge control and motion control possible.
Ultra-high speed AWT
The Super Jet AWT (Ultra-high speed Automatic Wire Threader unit) uses the conventional pipe-jet method combined with wire annealing function, greatly expanding the range of wire connection modes to choose from and meets the needs of various applications.
Product Specifications

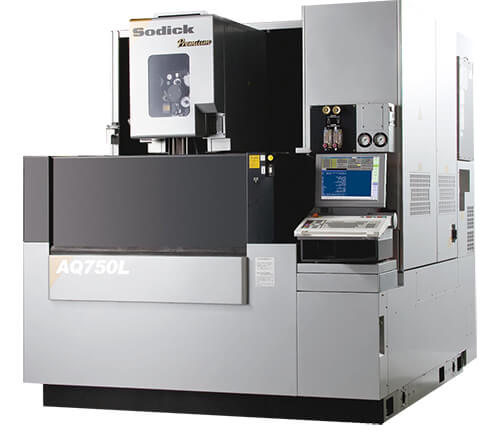

| AQ750L | AQ900L | |
|---|---|---|
| Axis stroke X x Y x Z (mm) | 750×500×400 | 900×600×400 |
| U x V axis travel (mm) | 770×520 | 920×620 |
| Max. taper angle | ±30° (thickness：150mm) |
±30° (thickness：150mm) |
| Max. machining size W x D x H (mm) | 1050×750×400 | 1200×900×400 |
| Max. weight of workpiece (kg) | 1500 | 2000 |
| Machine tool dimensions W x D x H (mm) | 2100×2800×2350 | 2380×3150×2395 |
| AQ1200L | AQ1500L | |
|---|---|---|
| Axis stroke X x Y x Z (mm) | 1200×800×400 | 1500×1000×600 |
| U x V axis travel (mm) | 1220×820 | 1520×1020 |
| Max. taper angle | ±30° (thickness：150mm) |
±30° (thickness：150mm) |
| Max. machining size W x D x H (mm) | 1600×1200×400 | 1900×1400×600 |
| Max. weight of workpiece (kg) | 4000 | 8000 |
| Machine tool dimensions W x D x H (mm) | 4100×3870×2490 | 5600×4435×2930 |
