Precision parts machining for Medical, Aerospace and Cutting tools

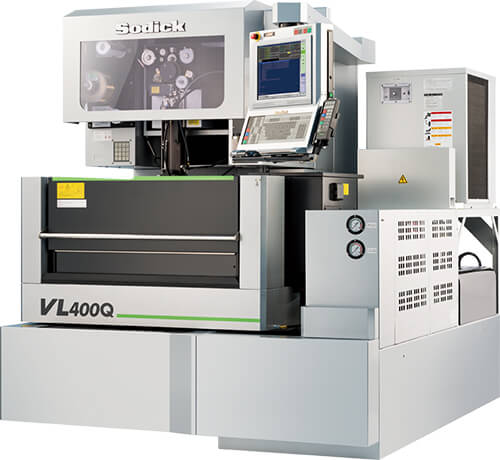

The most reliable linear motor driven Wire-cut EDM
Improved surface finish supports variety of machining needs
Main Features
No screw drive system
The no screw drive system, which uses a linear motor and linear scale, is the ideal drive method which maintains high-speed and high response semi-permanently. The initial positioning accuracy can be maintained for years and years; machine operators will everlastingly enjoy the remarkably reliable machining performance.
New power supply unit
The new power supply unit employs “Perfect Active Control” technology. It realizes high-speed processing of discharge control and motion control simultaneously. The “Heart-NC”, automatic programming system, is installed standard which allows machining program procedure without experience.
Versatility
The VL series are equipped with many advantageous functions as standard; such as, the advanced corner control system, automatic float control, new high quality surface finish circuit, and more.
Moreover, Sodick’s in-house made superior ceramics are adopted standard for precision machining.
Product Specifications
| VL400Q | VL600Q | |
|---|---|---|
| Axis stroke X×Y×Z (mm) | 400 × 300 × 220 | 600 × 400 × 270 |
| U x V axis travel (mm) | 80 × 80 | 80 × 80 |
| Max. taper angle | ±15°(thickness：120mm) | ±15°(thickness：120mm) |
| Max. workpiece dimensions W x D x H (mm) | 830 × 610 × 215 (Flushing machining) |
990 × 670 × 265 (Flushing machining) |
| Max. weight of workpiece (kg) | 500 (Flushing machining) |
850 (Flushing machining) |
| Machine tool dimensions W x D x H (mm) | 2020 × 2310 × 1990 | 2620 × 2605 × 2080 |
